1-)Primary Impact Crushers
High Efficiency, Low Cost!
Our primary impact crushers are specifically designed for the mining, quarrying, and construction industries. Our machines stand out with their high-capacity production, ensuring high-capacity production and low-cost operation, making them ideal for processing large rock materials efficiently.
Technical Specifications :
- Feeding Size : 1500 mm – 1000 mm
- Capacity : 80 tons/hour – 500 tons/hour
- High Durability: Wear-resistant, long-lasting rotor and impact plates
- Energy Efficiency: Maximum crushing power with minimal energy consumption
- Easy Maintenance: Quick-replacement wear parts for reduced downtime
Higher capacity, lower operating costs!
Our primary impact crushers provide an efficient production process with a high reduction ratio and optimized rotor design, helping your business save both time and costs.
2-)DMK (Secondary Impact) Crushers
High Crushing Efficiency, Low Operating Costs!
Our DMK series secondary impact crushers are designed for high-efficiency crushing in the mining, quarrying, and construction industries. Capable of processing a wide range of materials such as limestone, dolomite, basalt, and granite, DMK crushers ensure a high reduction ratio, delivering uniform and precisely sized final products.
Technical Specifications:
- Feeding Size: Up to 300 mm
- Capacity: 100 – 450 tons/hour
- Rotor Diameter: 1120 mm
- Rotor Width: 1000 mm / 1250 mm / 1500 mm
- Motor Power: 160 – 250 kW
- Material Compatibility: Limestone, dolomite, basalt, granite
Advantages of DMK Crushers:
- High Reduction Ratio: Efficiently reduces material to desired sizes.
- Low Maintenance Costs: Special design for enhanced wear resistance.
- Energy Efficiency: Maximum performance with low energy consumption.
- Durable & Robust Structure: Heavy-duty rotor and impact plates.
- Easy Maintenance & Service: Quick-replacement wear parts for minimal downtime.
Our DMK series crushers boost your production efficiency while minimizing maintenance and energy costs. With their robust construction, superior performance, and long-lasting durability, they are a reliable solution for your crushing needs.
HIGHLIGHTS
- Heat-Treated, Dynamically Balanced, Hard-Surfaced Rotor
- Hydraulically Opening Crushing Chamber for Easy Maintenance
- Hydraulic-Assisted Crusher Plate Adjustment
- Optional Third Breaker Plate for Controlling Top Product Size in Open Circuit
- Positive Rotor Lock for Safe Maintenance
3-)Tertiary Impact Crushers
Precision Crushing, High Efficiency!
Our tertiary crushers are the perfect solution for concrete aggregate production, asphalt plants, and construction sites requiring high-quality sand production. Designed to efficiently process a wide range of materials including limestone, dolomite, basalt, and granite, these crushers ensure a high percentage of fine material and sand production.
Technical Specifications:
- Feeding Size: Maximum 150 mm – Minimum 5 mm
- Capacity: 50 – 200 tons/hour
- Rotor Diameter: 1100 mm
- Rotor Width: 1000 mm / 1250 mm / 1500 mm
- Motor Power: 110 – 250 kW
Material Compatibility: Limestone, dolomite, basalt, granite
Advantages of Tertiary Crushers:
- High Crushing Efficiency: Produces fine and uniform material
- Low Maintenance Costs: Special wear-resistant design
- Energy Efficiency: Maximum performance with minimal energy consumption
- Optimized Sand and Fine Material Production: Ideal particle distribution for asphalt and concrete
- Durable & Robust Structure: Heavy-duty rotor and impact plates
- Easy Maintenance & Service: Quick-replacement wear parts for reduced downtime
Our tertiary crushers offer high efficiency and low operating costs, making them a long-term investment for your business. With their precision crushing capability, they are the ideal choice for high-quality fine aggregate and sand production.

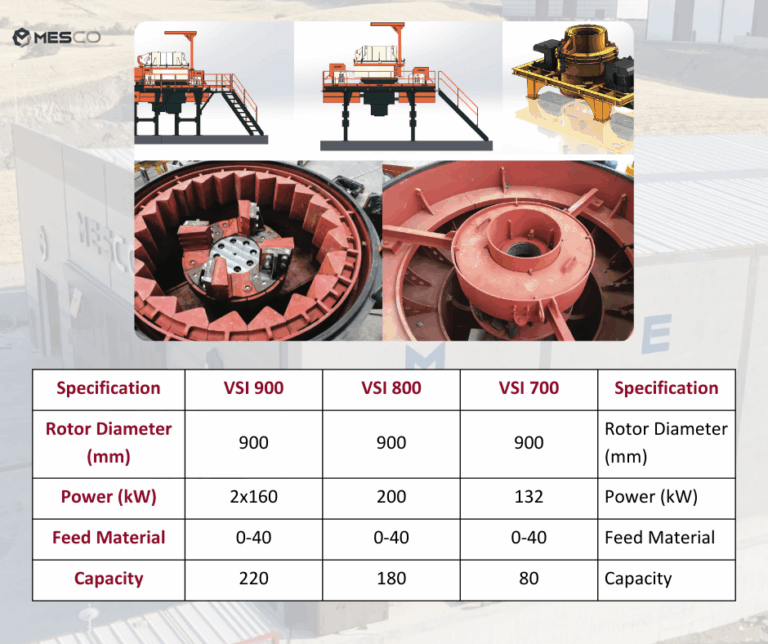

4-)Our Vertical Shaft Impact Crushers (VSI)
The Perfect Solution for High-Quality Sand Production!
Our Vertical Shaft Impact Crushers (VSI) offer the perfect solution for concrete and asphalt aggregate production, fine material processing in the construction sector, and high-quality sand production. They efficiently process a wide range of materials, including limestone, dolomite, basalt, and granite, ensuring a high percentage of fine material and sand output.
VSI crushers are tertiary crushers used to crush, shape, and produce sand from hard and abrasive materials ranging between 0-40 mm in size.
There are two types of VSI crushers: closed rotor and open rotor.
Closed rotor VSI crushers can handle stones up to 0-40 mm in size. However, they are not suitable for processing returned material since oversized pieces may be present in the feed material from previous crushing stages.
VSI crushers operate by accelerating the incoming material within the rotor at a speed of 67-80 m/s, then propelling it towards the stone box lining inside the stator and other particles entering from outside the rotor. This rock-on-rock crushing method ensures highly efficient material reduction.
VSI Crushers are designed for materials with a hardness lower than class 9 and a moisture content of less than 9%. The processed materials must be non-flammable and non-explosive mineral materials.
Technical Specifications:
- Feeding Size: Maximum 40 mm – Minimum 5 mm
- Capacity: 50 – 200 tons/hour
- Rotor Diameter: 900 mm
- Motor Power: 160 – 200 kW
- Material Compatibility: Limestone, dolomite, basalt, granite
Our VSI crushers enhance operational efficiency by producing high-quality fine materials while offering long-term profitability with low maintenance requirements.
